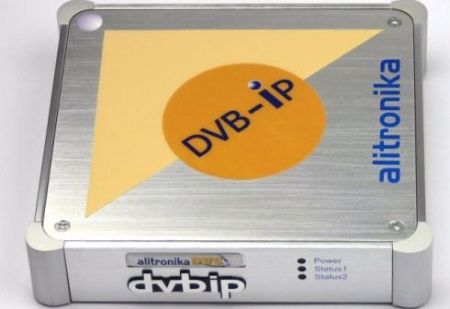

AT60IP

  TS over IP

  MPEG2 TS Player, Recorder & Converter
  DVB-S2/S input & DVB-ASI Output
  DVB-IP Transmiter & Receiver
  Tunnelling of DVB-S2/S signals over:
  LAN, WAN or Internet
  Pro-MPEG Code Of Practice #3(COP3) FEC

spade spade

  Downloads:

spade spade

  Standard Features:

Combined DVB-S2/S to DVB-IP/DVB-ASI Converter.
Web based Software as well as DVSStationIP an IP TS Recorder & Player.

IP Encapsulation of the TS data for Ethernet uses IP and the User Datagram Protocol (UDP).
Real-time Transport Protocol (RTP)encapsulation.
Pro-MPEG Code Of Practice #3(COP3) forward error correction (FEC).
Dedicated hardware performs the encapsulation, which maximizes the throughput and latency.
IP
Encapsulation of the TS data for Ethernet uses IP and the User Datagram Protocol (UDP), with Real-time Transport Protocol (RTP) encapsulation and COP3 FEC.
Dedicated hardware performs the encapsulation, which maximizes the throughput and latency.
The device can accept traffic from Ethernet network and recover TS data.
For RTP encapsulated data, the device incorporates buffer to absorb network jitter and correct for packet reordering and packet duplication.
COP3 FEC-based lost packet recovery is available.
For multiple TS interfaces, the AT60IP, individually maps each one to a specific UDP/IP socket (a combination of IP address and UDP port).
All other encapsulation parameters can also be individually configured per TS.
Input & Output
IP Maximum rate of up to 214 Mbps per ASI channel.
Network jitter correction.
Supports constant bit rate ASI output.
IP address assignment from DHCP server and static IP address.
IP address also configurable through the web interface.
Configuration for Time To Live (TTL) for Multicast.
Input
DVB-S2/S Direct TV Compliant QPSK Reception.
Demodulation Standards: DVB-S, DVB-S2, DVB/DSS.
Input Frequency Range: 950 MHz to 2150 MHz.
Symbol Rate: 2 Mbaud to 45 Mbaud.
Channel Bitrate: 190Mbit/s.
Supports 188, 204 Transport Packet Sizes.
Output
RF Loop Through Output.
DVB-ASI Output.
Supports DVB According to Standard A1010 Rev1 and EN50083

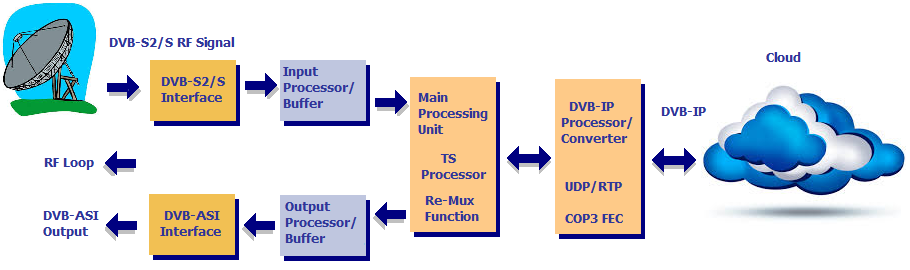

  Block Diagram:

AT60IP the Key to the Cloud

The Easiest & Cheapest way to send TS from a Dish to the Cloud

AT60IP => DVB-S2/S to IP converter.

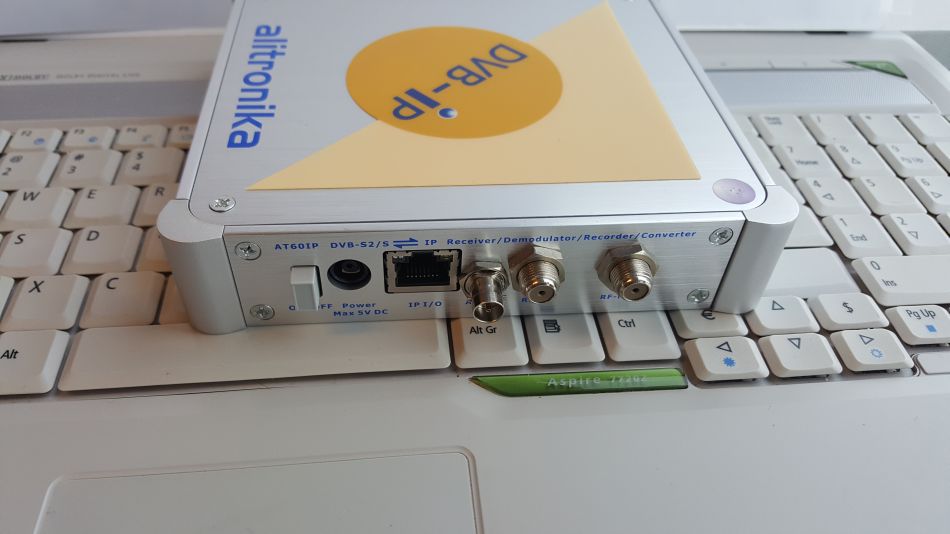

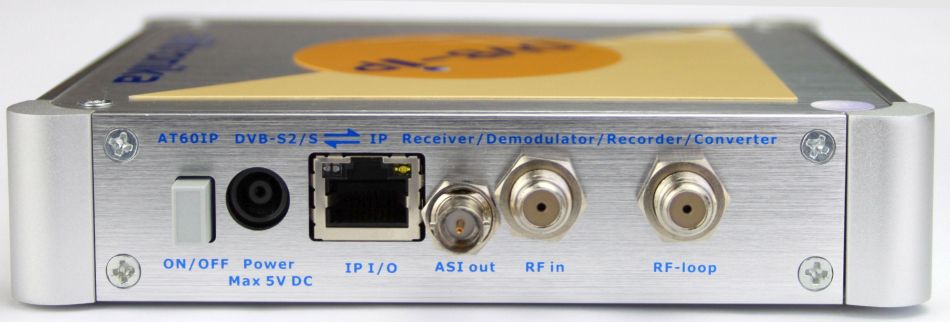

  Connections:

  Application:

Targeted for Digital Video Professionals, Sophisticated End Users and OEMs
the AT60IP is an ideal solution for a number of applications such as:
Development Tools.
DVB-S2/S to IP Gateway.
Universal Interface for Digital Video or MPEG-II Transport Stream Recording, Playing and Processing.
Video on Demand Server.
Software Based MPEGII Encoders and Decoders.
Studio to Transmitter Links.
ENG (Electronic News Gathering) – Stream content to and from remote locations.

  Specification:

PROTOCOL SUPPORT:
DVB-IP:
Ethernet encapsulation: IEEE 802.2 SNAP, Eth.
Encapsulation: UDP or RTP
IP support: IPv4
IP-address assignment: DHCP,link local or static
Multicast support: IGMPv2
Date Rate: 100/1000
GigE port Physical layer: IEEE 802.3a
GigE port Connector: RJ-45 with LEDs
FEC: Pro-MPEG Code Of Practice #3(COP3)
TSoIP to ASI latency: Less than 1ms
Jitter tolerance range: 1 .. 500ms
DVB-S2/S:
RF Tuner Connector: 75 Ohms F Type
Loop Through Connector: 75 Ohms F Type.
Input Frequency Range:950 MHz to 2150 MHz.
Input Signal Level:-65dBm to -25dBm @ 27.5 Mbaud.
Maximum Symbol Rate: QPSK/LDPC/BCH: 45MSPS, 8PSK/LDPC/BCH:30MSPS, DVB:2-45MSPS.
DisEqc: DisEqC 2.X.
Standards: DVB-S2/S & Direct TV.
Demodulation Standard: DVb-S2 & DVB/DSS compliant.
Modulation Method: DVB-S:QPSK, DVB-S2: QPSK, 8PSK, 16APSK & 32APSK.
Supported Code Rate:
-QPSK: 1/4, 1/3, 2/5, 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9 and 8/10.
-8PSK: 3/5, 2/3, 3/4, 4/5, 5/6, 8/9 and 9/10.
-16APSK: 2/3, 3/4, 4/5, 5/6, 8/9 and 9/10.
-32APSK: 3/4, 4/5, 5/6, 8/9 and 9/10.
DVB-ASI:
DVB-ASI port Physical layer: EN50083-9
DVB-ASI Connector: 75 Ohms Mini BNC.
Input Return Loss: >15 dB.
Input Signal level: 800 mV +/- 10%
Output Signal level: 1.0Vp-p nominal.
DVB-ASI Input/Output Bit Rate: 0 to 214 Mbit/s.
DVB-ASI Output Clock: 270 MHz.
spade

  Application Software:

DVSStation3/4/IP: Alitronika devices are supported by DVSStation3/DVSStation4 or DVSStationIP, Alitronika's FREE Transport Stream Player, Recorder, Analyser and converter application software. Please refer to the specification and User Manual of these applications for more information. Even better please download them from our website and try them out. They works in DEMO mode without any Alitronika devices.

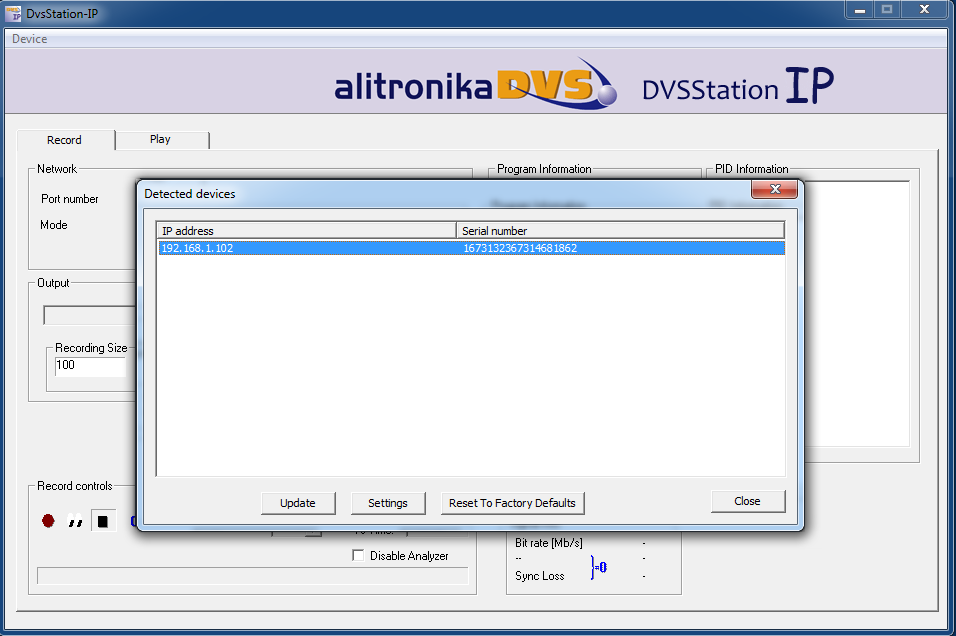

Using the"Discover" function of DVSStationIP, the device is located

3 options, "Update", "Settings" & "Reset to Factory Default"

Settings opens the Web application Main Screen. Reset to Factory Default resets all the STORED parameters, including the Password and Update uploads the lastest version of the Firmware.

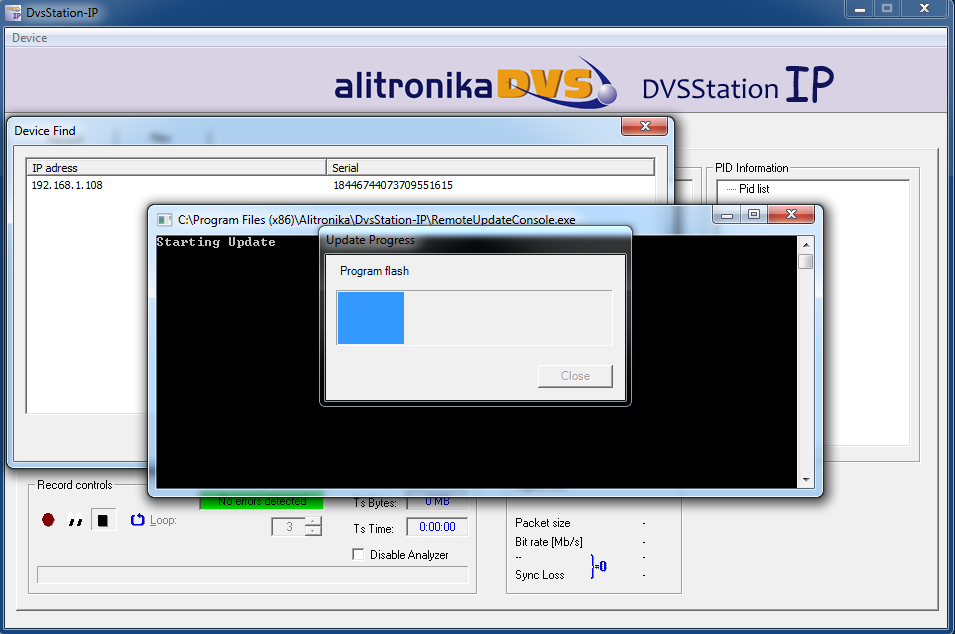

Updating the device's Firmware takes a few seconds

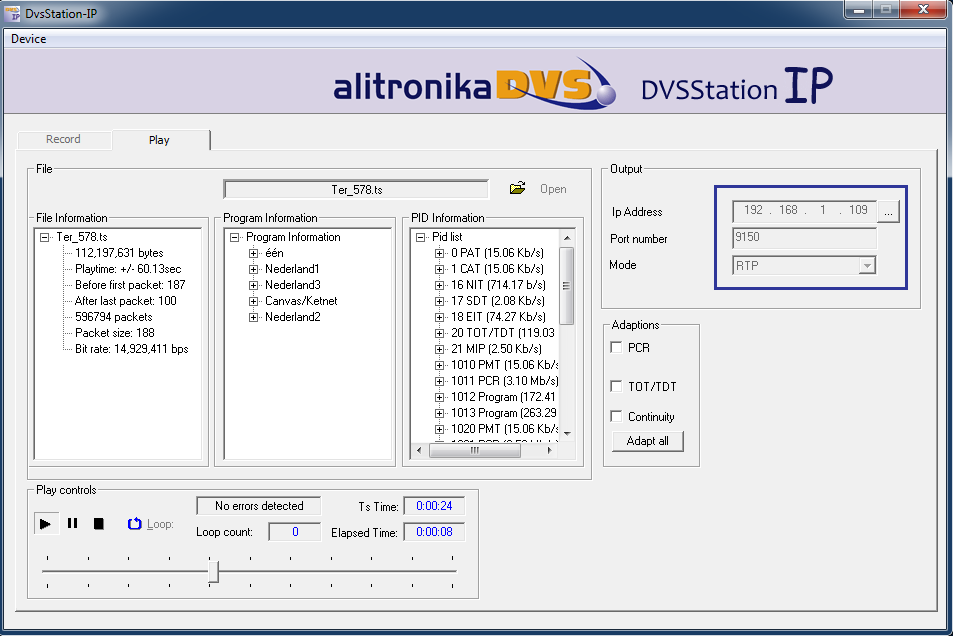

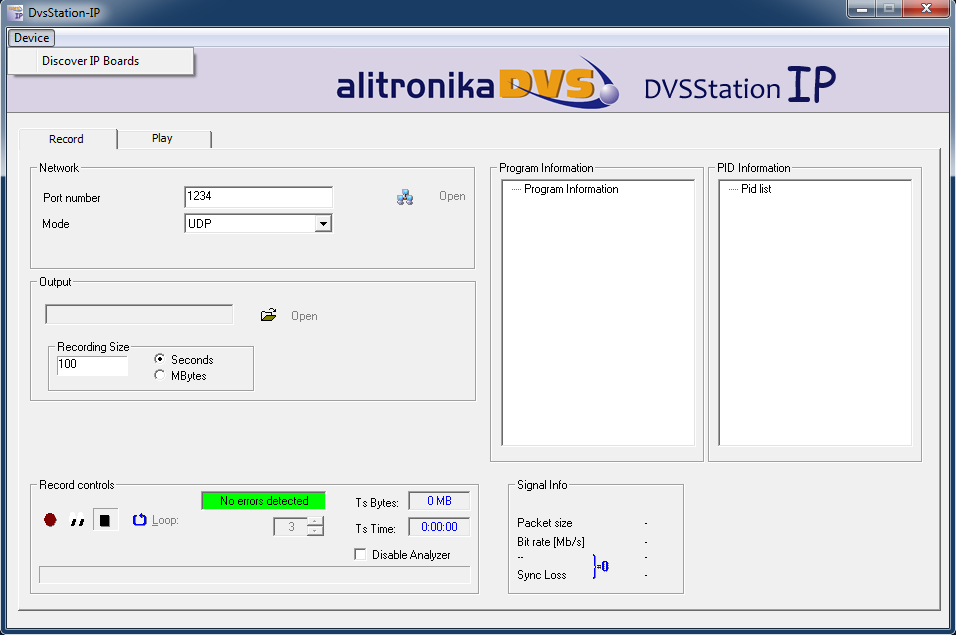

Play Screen - Select the device's IP address & send Transport Streams to it

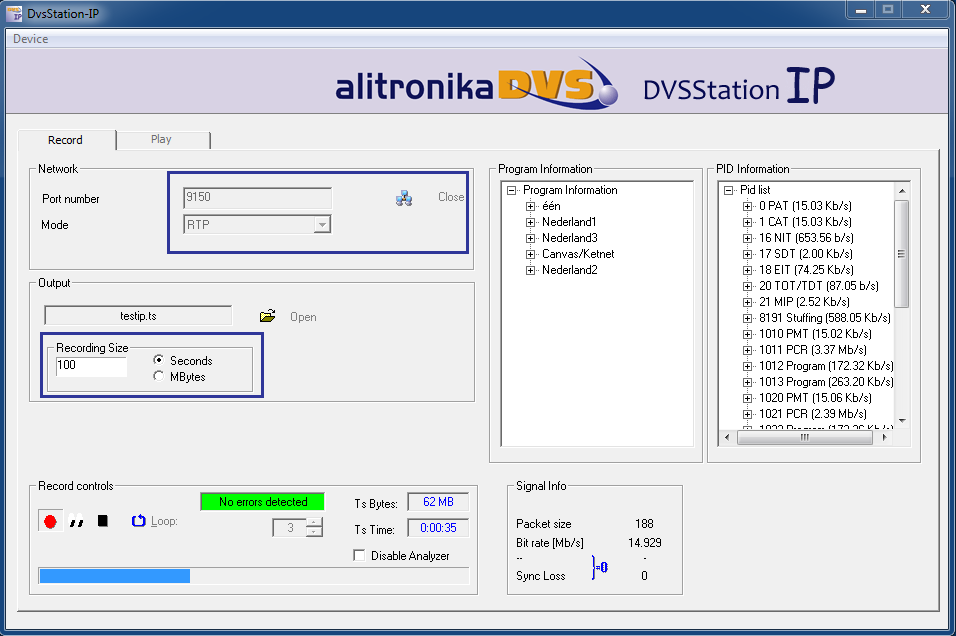

Record Screen - Or Receive & Record Transport Streams from it

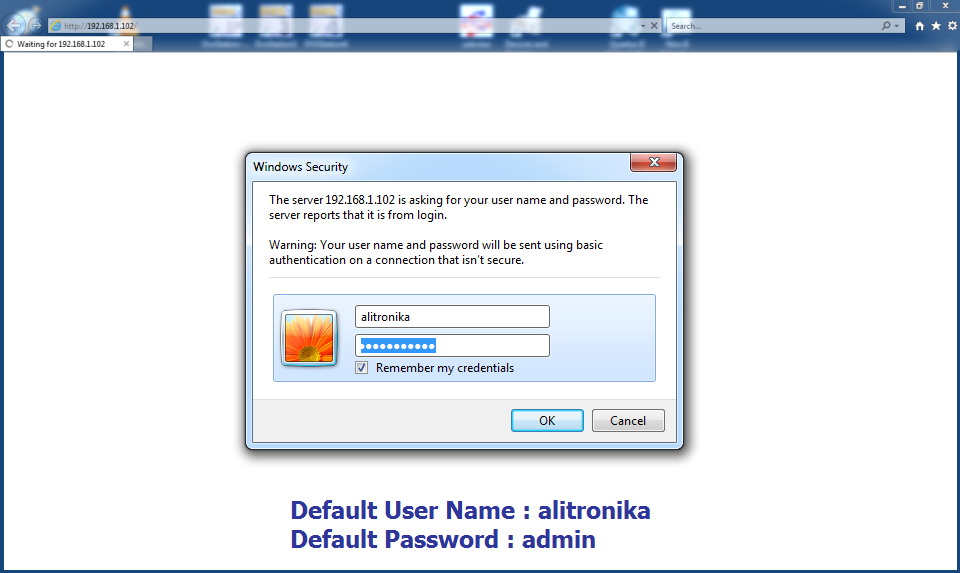

In order to enter the Web application loging is needed

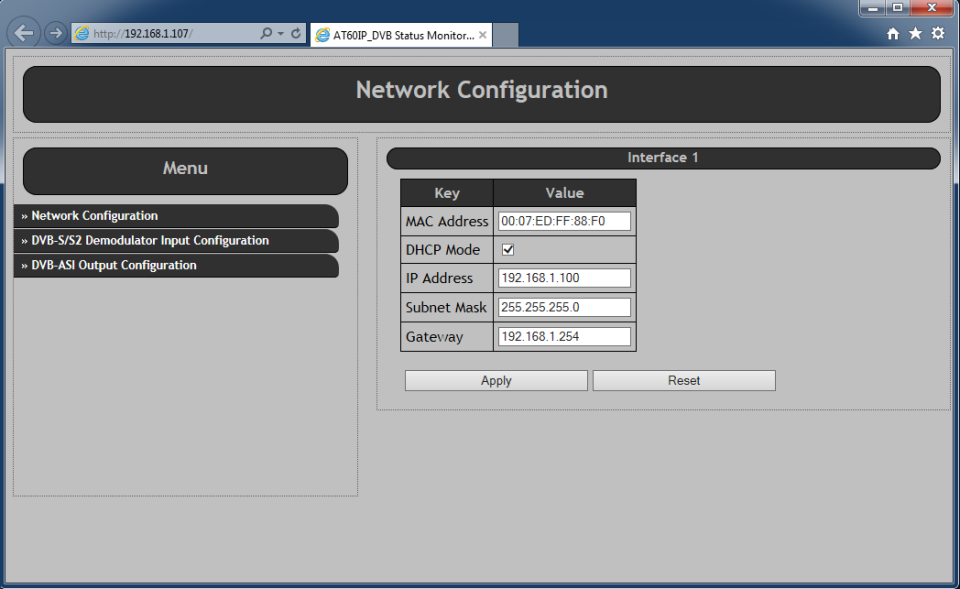

The AT60IP Version1 Web application Main Screen

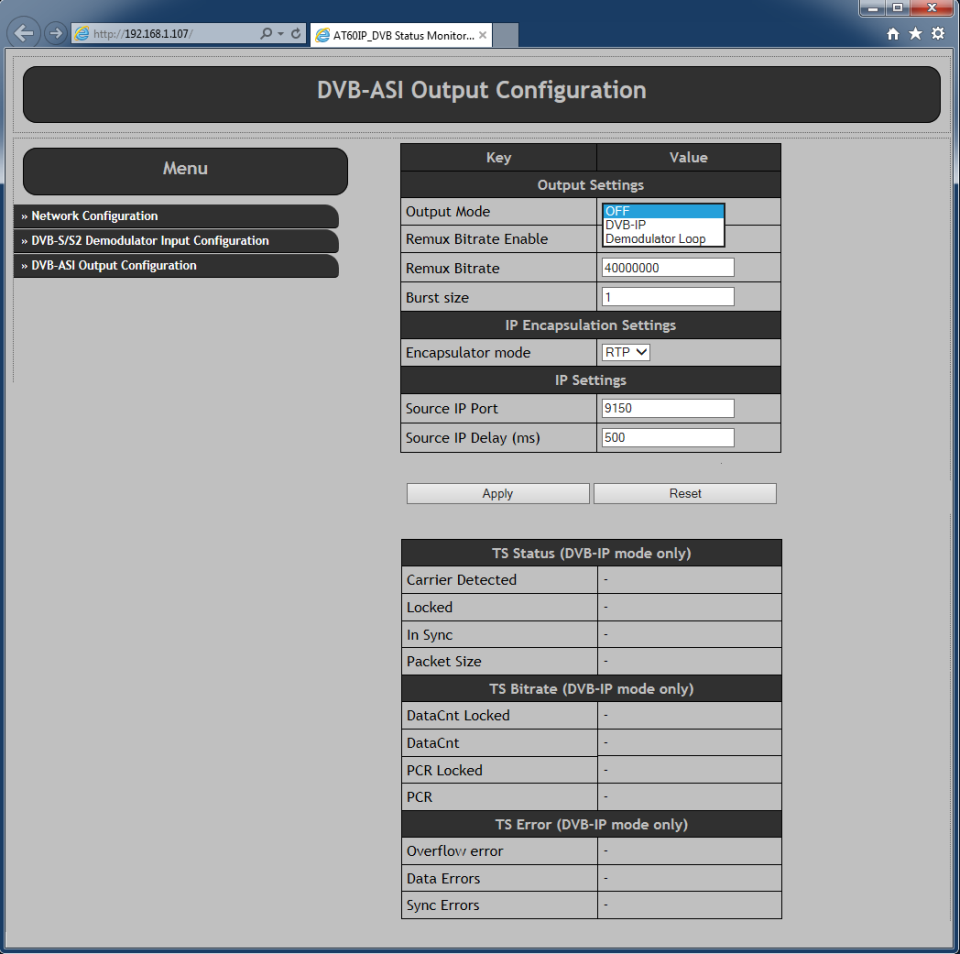

DVB-ASI Output Settings

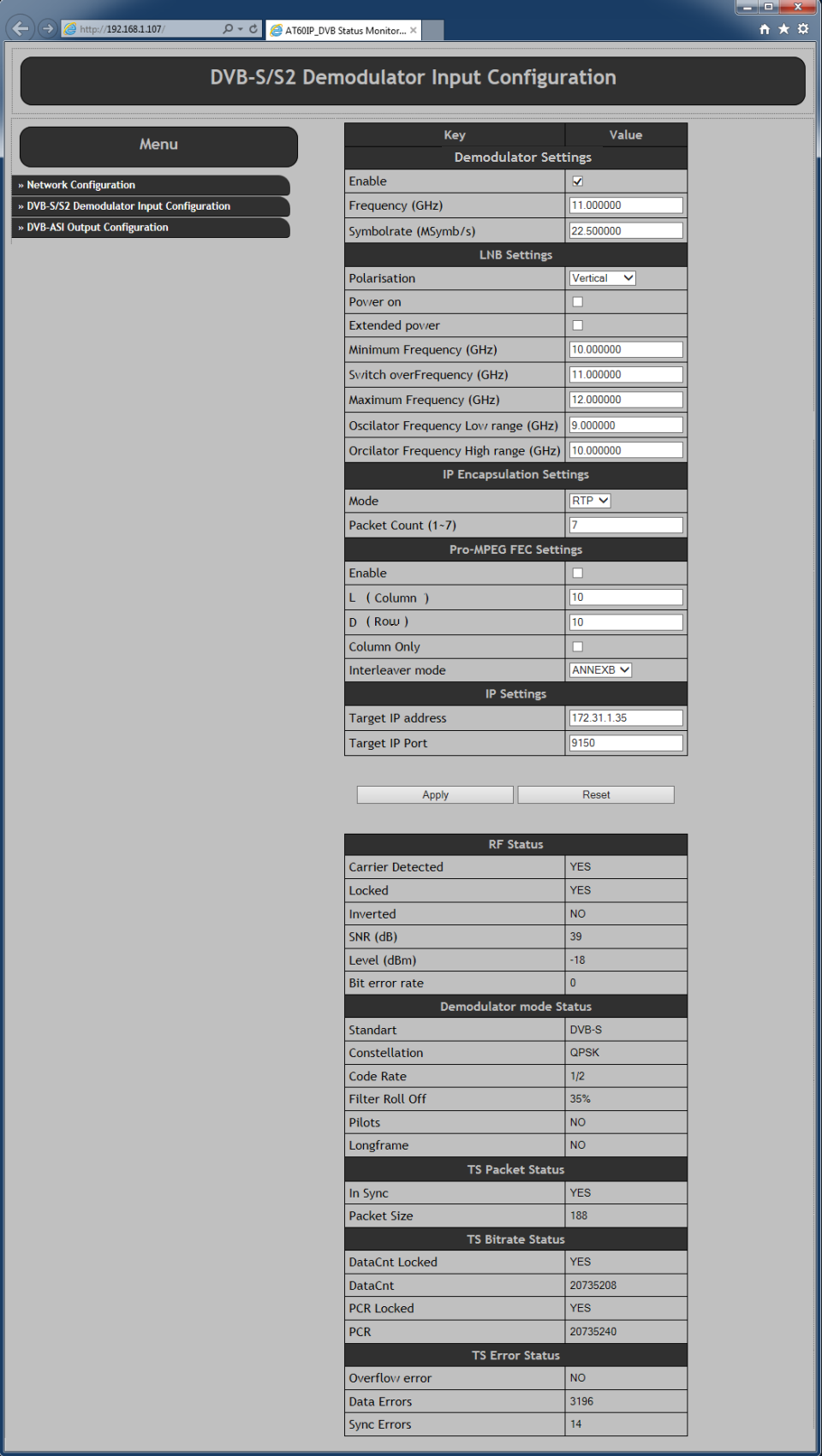

DVB-S2/S Input Settings







spade

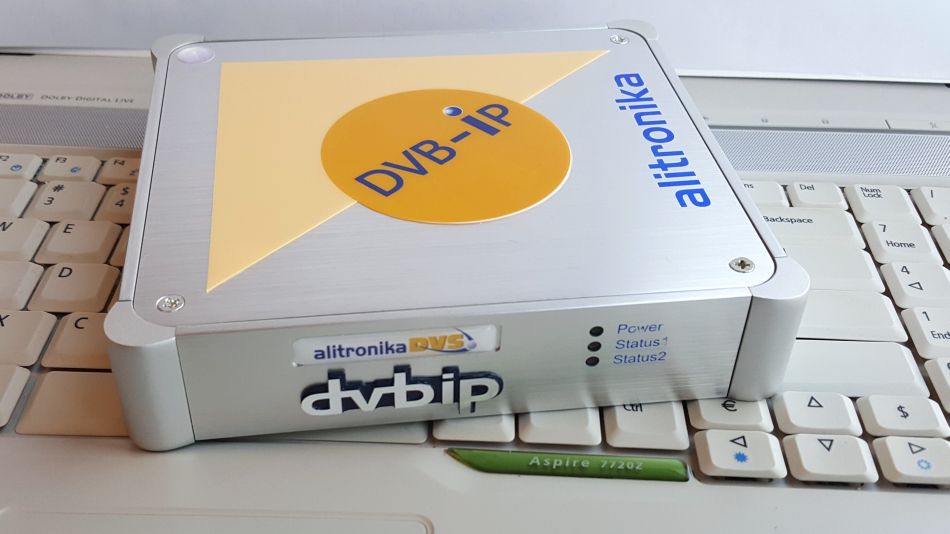

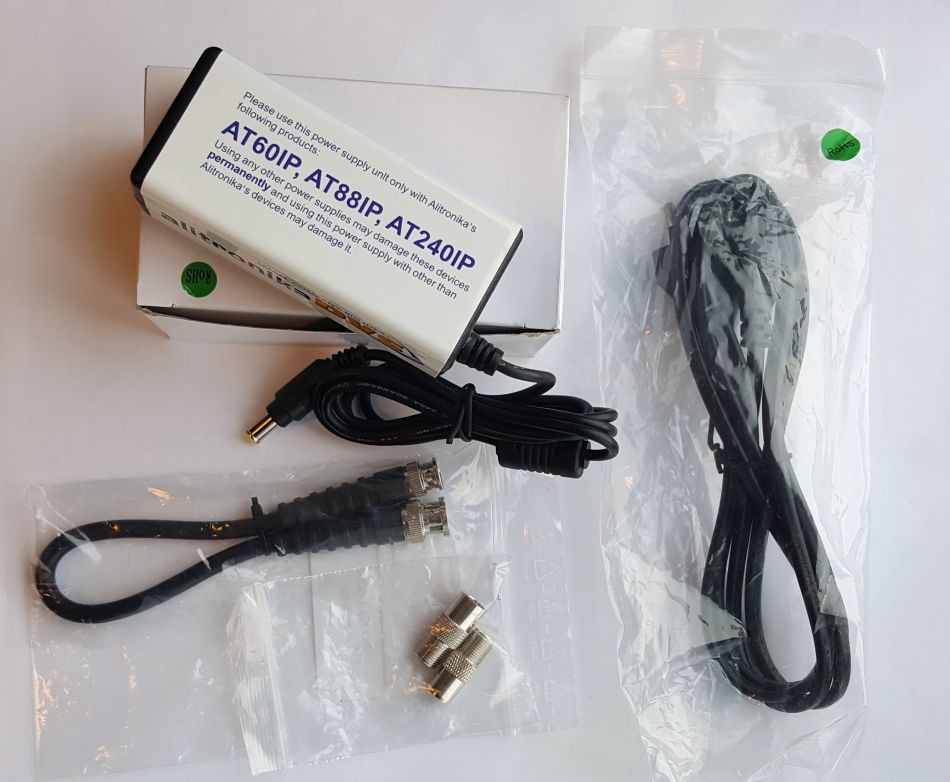

  Photo Gallery:

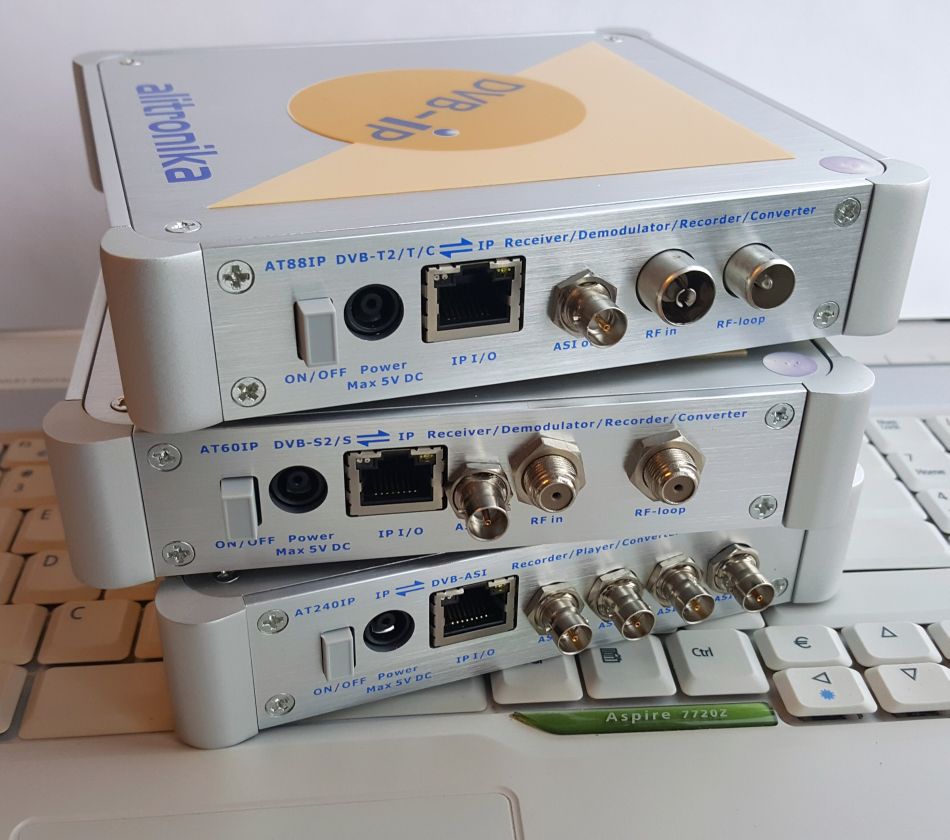

  DVB IP Products
